Introduction

This year (2024) I decided to do the Advent of Code put on by Eric Wastl who’s a bit of a legend in my opinion now. I’ll cover some of the hardest problems I faced, my ramblings / thoughts, and anything that I learned. But here’s the final result:

2024

And yes, I did adjust the padding-left for the screenshot

Background

What is Advent of Code? You can find more there (<-), but the idea is it’s a somewhat competitive set of programming challenges. It’s a great way to challenge yourself, potentially learn some new things, explore a new language, get involved with a great community, and see some of the very impressive solutions that people put out.

Goal

My goals were:

  • ✅ solve all solutions
    • Note, for day17 and day24 I did have to consult the subreddit and eventually for day24 I had to heavily take inspiration from a post. I’ll discuss those in more detail
  • 🟡 solve all of these without using ChatGPT or Claude
    • I did end up using LLMs for debugging and to generate some of the helpful input utils, in addition one of the problems required GraphViz, so I used LLMs to handle a lot of that interaction with the third party library
    • For some of the harder problems, I tried to use LLMs but honestly with pretty disappointing results. I’ll talk about that more later.
  • ❌ implement all solutions in both Python and Rust
    • I’ve been trying to learn Rust for awhile now and have had some exposure at Dropbox, but really want to get more familiar with Rust and figured this could be a good chance
    • That being said, I only got to about day09 in Rust and the rest I just took with Python

Questions

I’m going to frame this whole article a bit differently than normal, and basically just have the sections be various questions that either I got asked from others, I asked myself, or I ruminated on during this process.

Why am I doing this?

Yeah, why did I do this? I asked myself that question a LOT. Especially during some of the more challenging problems (which i’ll discuss later).

To be honest, I’m not sure. I haven’t really come up with a longer post about the state of Ai (i’m going to try spelling it like this because of this article) and LLMs, but I think generally a bit of an Ai doomer.

So one of the reasons is to get back to my roots.

Over the past probably 2 years since ChatGPT and the whole LLM craze, the way I work and operate has changed drastically. And I think that’s good - I can learn quicker, explore more with a customized approach, and build faster (although more efficiently I think there are implications of LLMs there). However… That’s not really what attracted me to computer engineering / science. I miss implementing some of the logic and solving these hard problems.

Another one of the reasons I wanted to do this is to get more Rust exposure.

Rust is rapidly becoming the developer’s language (see here and here). So I figured I should ride that bandwagon some.

And finally, just to solve hard problems and see if I learn anything new.

I did, and I’ll definitely discuss some of those below.

Aren’t LLMs just going to replace everything?

Yeah so that was pretty interesting. You’d be surprised.

On day17 and day24, I definitely tried to use LLMs and they all kind of dropped the ball. They couldn’t even really come up with logic. And yes, even o1.

The results actually surprised me. Perhaps because these were pretty novel problems (again, huge shoutout to Eric).

I wasn’t sure if I was alone in this approach, but it seems like others can confirm perhaps a lackluster / disappointing performance from LLMs. And yes, I know that o3 is going to out perform like 99.9% of developers in competive programming and all of that, so who knows. But I will say actual use cases seemed lackluster at the moment. And I’m sure all the die-hard defenders are going to defend it and sure - i’m sure that some of this could have been prevented or solved with better prompting but that was not the result that I would have hoped for.

One other thing that I thought was pretty interesting was a fellow solver posted about his findings on LLMs with Advent of Code here.

Ok fine, but why this year?

Seemed a good a year as any. Perhaps it was the fact that I always felt like if I was going to start, then I wanted to finish, and I feel like I had enough time this year or maybe enough breathing room with work that this was possible.

Did you accomplish all your goals? Any excuses?

I did not accomplish all my goals. This became more of an algorithmic exercise than a “learn-a-new-programming-language-by-doing” exercise - which if anything is just a testament to some of the great work that Eric has put together.

I also finished a bit late, but I had a trip with my girlfriend and a family trip so two weeks of December weren’t even really work or fun work (like aoc) focused. As a result, I was a bit late. Furthermore, I burned out a bit towards the end (see day24).

Beh, sure - well did you solve them all without any help?

Not really - especially once we got into the day2* area, the problems were pretty fascinating and I checked the subreddit on numerous occasions. I’ll get into the community in a bit but that was definitely a highlight.

Oh so you’re a bad engineer?

Hm maybe? I’d say I’m not going to be competing in any programming competitions soon.

What was the community like?

Ok yes, so this is an awesome community and I genuinely appreciate and have a ton of respect for the contributors, and lots of the solutions out there.

My personal highlights that I saw?

[2024 Day 23 (Part 2)][Python] Solved using a Quantum Computer!
byu/Few-Example3992 inadventofcode


I’m going to do another writeup about the state of quantum soon, but such a beautiful and cool application, and a great writeup of what they did. This is not my code above or my post to be clear.

I think those two really take the cake. I’m not a big poster on Reddit, but maybe next year, I’ll get a bit more involved.

Ok well… what did you learn?

Actually quite a bit! Even more so than I was expecting.

Z3 for Python

Z3 is theorem prover that Microsoft put out awhile ago. The code is found here, but I think this page is a bit more helpful.

What this means in practicality is that if you can model your problem as an equation, and there is a solution, then you can use this library to help you solve it in an optimal and efficient way.

This library came in handy on Day17 for me personally.

However, I think it’s fun to look at some of the examples that can be provided.

Here’s one from the basic guide:

Ben Rushin is waiting at a stoplight. When it finally turns green, Ben accelerated from rest at a rate of a 6.00 m/s2 for a time of 4.10 seconds. Determine the displacement of Ben’s car during this time period.

from z3 import Reals, set_option, solve

d, a, t, v_i, v_f = Reals("d a t v__i v__f")

equations = [
    d == v_i * t + (a * t**2) / 2,
    v_f == v_i + a * t,
]

# Given v_i, t and a, find d
problem = [v_i == 0, t == 4.10, a == 6]

solve(equations + problem)

# Display rationals in decimal notation
set_option(rational_to_decimal=True)

solve(equations + problem)

╰─➤  python z3_example_1.py
[t = 41/10, v__i = 0, v__f = 123/5, d = 5043/100, a = 6]
[t = 4.1, v__i = 0, v__f = 24.6, d = 50.43, a = 6]

Here’s another where it’s non-linear.

from z3 import Real, set_option, solve

x = Real("x")
y = Real("y")
solve(x**2 + y**2 == 3, x**3 == 2)

set_option(precision=30)
print("Solving, and displaying result with 30 decimal places")
solve(x**2 + y**2 == 3, x**3 == 2)

╰─➤  python z3_example_2.py
[y = -1.1885280594?, x = 1.2599210498?]
Solving, and displaying result with 30 decimal places
[y = -1.188528059421316533710369365015?,
 x = 1.259921049894873164767210607278?]

Here’s a harder fun one that I asked ChatGPT for a more complex and hard problem

Problem:
A ball is launched upward with an initial velocity of $v_0 = 20 \, \text{m/s}$ from a height of $h_0 = 10 \, \text{m}$ above the ground. The motion is affected by air resistance, modeled as a force proportional to the velocity ($F_r = -k \cdot v$), where $k = 0.1$ is the air resistance coefficient. Assume acceleration due to gravity is $g = 9.8 \, \text{m/s}^2$.

Using the following equations, determine:

  1. The time of flight $t$,
  2. The maximum height $h_{\text{max}}$,
  3. The velocity when the ball hits the ground $v_f$.

Equations

  1. The height of the ball as a function of time: \(h(t) = h_0 + v_0 \cdot t - \frac{1}{2} \cdot g \cdot t^2 - k \cdot t^2\)
  2. The velocity of the ball as a function of time: \(v(t) = v_0 - g \cdot t - k \cdot t\)
  3. At the time of impact: \(h(t) = 0\)
from z3 import Real, Solver, sat

# Declare variables
t = Real("t")  # Time of flight
h_max = Real("h_max")  # Maximum height
v_f = Real("v_f")  # Final velocity
g = Real("g")  # Acceleration due to gravity
k = Real("k")  # Air resistance coefficient
h_0 = Real("h_0")  # Initial height
v_0 = Real("v_0")  # Initial velocity

# Equations
equations = [
    # Height as a function of time
    h_0 + v_0 * t - (1 / 2) * g * t**2 - k * t**2 == 0,  # Impact at h = 0
    # Maximum height
    h_max
    == h_0
    + (v_0**2) / (2 * g),  # Max height (ignoring air resistance here for simplicity)
    # Final velocity at impact
    v_f == v_0 - g * t - k * t,
]

# Given values
problem = [
    h_0 == 10,  # Initial height in meters
    v_0 == 20,  # Initial velocity in m/s
    g == 9.8,  # Gravitational acceleration in m/s^2
    k == 0.1,  # Air resistance coefficient
]

# Solve the system
solver = Solver()
for eq in equations + problem:
    solver.add(eq)

if solver.check() == sat:
    model = solver.model()
    print(f"Time of flight (t): {model[t]} seconds")
    print(f"Maximum height (h_max): {model[h_max]} meters")
    print(f"Final velocity (v_f): {model[v_f]} m/s")
else:
    print("No solution found.")

Solution:

╰─➤  python z3_example_3.py
Time of flight (t): 4.4494897427? seconds
Maximum height (h_max): 1490/49 meters
Final velocity (v_f): -24.0499484535? m/s

Bron-Kerbosh Algorithm

This algorithm is a famous algorithm for finding the maximum clique in an undirected graph.

This came into play on day23 when we were solving the problem related to the LAN party, and we had to find the largest group of connected computers.

I wasn’t familiar with this algorithm before AoC but it’s a beautiful algorithm and I want to give it enough time to walk through it with an example.

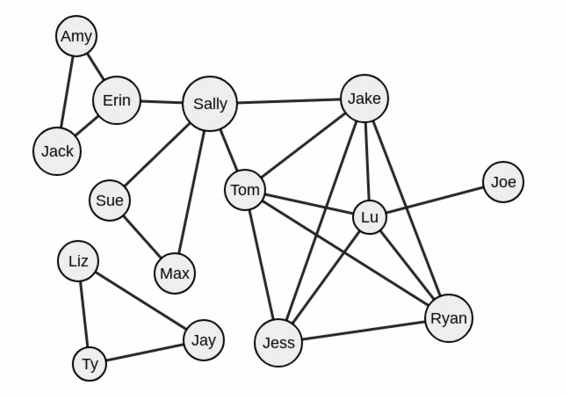

Here’s a visualization courtesy of this article:

bron-kerbosh-algo

Courtesy of David Pynes from here

This is an efficient way to find the maximum clique or grouping of entirely interconnected nodes in a graph. Here was my Python implementation:

def bron_kerbosch(graph: NetworkType, R: set[str], P: set[str], X: set[str], cliques: list[set[str]]) -> None:
    """
    https://en.wikipedia.org/wiki/Bron%E2%80%93Kerbosch_algorithm
    """
    if not P and not X:
        # Found a maximal clique
        cliques.append(R)
        return
    for node in list(P):
        neighbors = set(graph[node])
        bron_kerbosch(graph, R.union({node}), P.intersection(neighbors), X.intersection(neighbors), cliques)
        P.remove(node)
        X.add(node)


def largest_clique(graph: NetworkType) -> set[str]:
    cliques = []
    bron_kerbosch(graph, set(), set(graph.keys()), set(), cliques)
    return max(cliques, key=len)

Adder Gate Implementation

Day24 was a beast. Basically broke my brain. I am very appreciative of my good friend Sebastian who also attacked it (in a better way might I add) and solved it but also burned a lot of time on it.

The problem started off simply enough in Part 1. It was basically determining the final output through a series of connected gates in a graph. I used a topological sort which was an old coding interview problem we would give at Ab Initio.

I was pleased with my part 1, but then yeah part 2 basically came to the idea of this is meant to be a Ripple Carry Adder.

I probably should know more about this from my electrical circuit design courses in college, but man had it been a minute.

I saw people on the reddit thread talking about how to visualize it and then once visualized they could infer the gates to switch. So I started with some visualization(s):

Made using Zoomable

Note, I used Claude to help me with the PyGraphViz work.

Here’s another variation:

Made using Zoomhub (seemed like higher quality resolution handling for the larger image)

I still wasn’t totally able to solve it just by looking at these nodes. I knew the problem areas but I couldn’t deduce which ones to flip just by looking at them or even by spending a couple minutes with pen and paper.

This post was the key for me, and unlocked the logic I needed to detect 3 out of the 4 incorrectly swapped gates.

[2024 Day 24 Part 2] A guide on the idea behind the solution
byu/LxsterGames inadventofcode


The final one I also didn’t quite do perfectly. The post above has some more details about how to determine exactly the wrong gate (which I got in principle) but I didn’t spend enough time coding it up. I just tried all combinations, collected the ones that resulted in the right number, and then tried a range of different test cases for input and made sure it was functioning like a full adder gate.

So… a little bit gritty there but it got the job done.

What were the hardest days?

In my opinion, Day 24 with the Ripple Carry Adder was pretty obscenely difficult. I would not have been able to solve it most likely without the subreddit and some key insights there (or just more time than I was able to spend on that).

The other very hard day was Day 21, which I really wasn’t able to solve part 2 without [this insightful article][day21-artcile]. But man oh man what a great problem that was.

Ok this is sounding better - are you going to do it again?

Honestly? Probably not. Again, I love the problem solving and learning, but… it was a lot of time. And in a world where it’s so hard to be present, I don’t need to be trying to do or think more about these problems as I’m on a vacation with my girlfriend.

But who knows, I say that now, and maybe it’s like running a marathon.

Well… what are you going to do now?

More specifically, my girlfriend asked me something along the lines, “are you sad that this is done and no one really cares?” and I said I’m sad, but not because no one cares but sad that I didn’t do a better job. I suppose that’s part of it.

And as for what’s next, I have many many other blog posts and side projects that I need to work on as well as my full time job, so I am not hurting for next steps.

Code

Solutions

Here are all my solutions:

Closing Thoughts

Again, my solutions are not optimized or polished. I’d love to spend more time on this but I estimate that I’ve already spent probably 30 hours on this and it’s way over my allocated budget (or what I was expecting). Feel free to leave comments or leave my any suggestions per usual.

Until next time!
